設備名稱 Equipment name

晶硅電池AGV智能生產線  AGV Smart Factory

設備用途 Equipment Application

取代人工搬運片籃、信息智能交互、資源智能管控，實現整線自動化生產，工廠智能化管理。
Replace manual transportation of cassettes,all information can be intelligent interaction and  resources are controlled intelligently,which realize automatic production of entire production line  and intelligent management of the whole plant.

技術特點  Features

1、原料倉到成品倉均采用潛伏式AGV和貨架的方式，實現各工序之間的產品搬運工作。

Using‘latent-type AGV + shelf ’delivery system from raw material warehouse to finished products warehouse to realize cassettes are transported between each process steps.

2、采用S.C定制的MCS任務調度系統，根據MES系統下發的任務要求，來控制RCS小車調度系統搬運貨架，實現無人化、智能化生產。

Adopts S.C customized MCS task scheduling system and according to the task requirements issued by MES system, it controls RCS vehicle scheduling system to move shelves to achieve unmanned smart production.

3、MCS任務調度系統包含部分MES功能，滿足客戶的基本需求。

MCS task scheduling system includes some MES function which could meet the basic needs of customers.

4、有開放式貨架、半封閉式貨架、全封閉式貨架三種可選，滿足不同工藝生產需求。

Open/semi-enclosed /enclosed shelves optional, to meet different process needs.

5、貨架與自動化結構上采用機械方式對接，程序上采用網線連接進行信號傳輸，有效提升片籃傳輸可靠性。

The cassette shelf mechanically connects with tool automation structure and the program is transferred using network cable,which improves the reliability of the cassettes transportation effectively.

6、采用貨架代替緩存站方式，確保先進先出原則的同時，工序間的緩存貨架可靈活調用也可減少部分工序的緩存貨架大大降低成本。

Using cassette shelves to replace buffer station ensures the first-in-first-out principle and the flexible scheduling of buffer shelves greatly reducing cost.

7、選用國內一線品牌AGV生產廠商，有紋理導航、激光SLAM導航方式小車選擇。

Adopts Tier-1 AGV suppliers in China, texture navigation/ laser SLAM navigation optional.

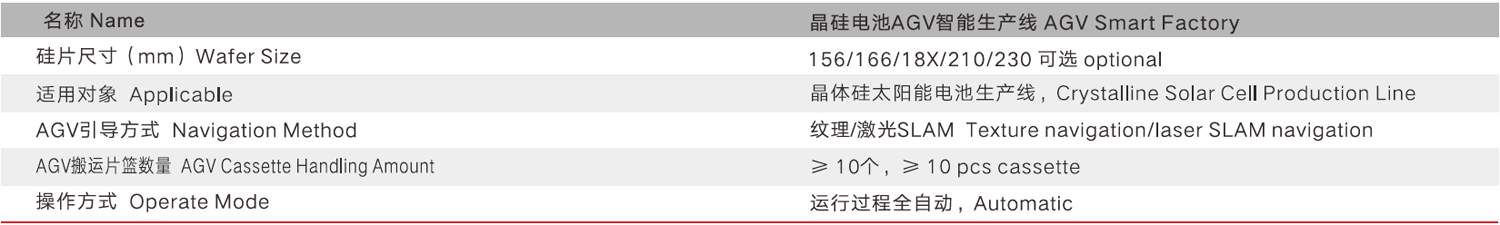

設備參數  Parameters
